PUSH3-2 - 2 GANG PUSH Wireless Dimming Panel (2.4GHz)
PUSH3-2 - 2 GANG PUSH Wireless Dimming Panel (2.4GHz)
Key Features:
-
Dual-Zone Control: Controls 2 independent lighting zones from a single wall panel.
-
2.4GHz RF Wireless Signal: Stable, long-range control with up to 30 meters in open areas.
-

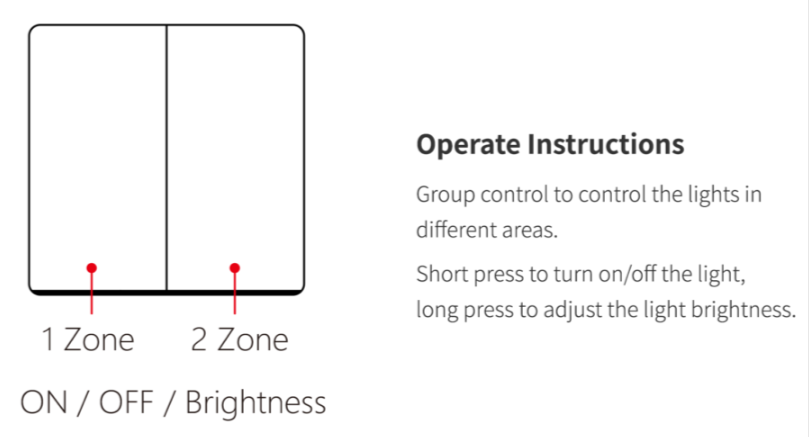

Push Button Interface: Simple short-press for ON/OFF and long-press for smooth dimming.
-
Battery-Powered Convenience: Operates on 2 × AAA batteries, no wiring required.
-
Wall-Mount Design: Fits standard 86-type EU/US wall boxes with a modern, low-profile glass finish.
Applications:
-
Multi-Room Control: Ideal for controlling two separate areas like kitchen + dining or hallway + entrance.
-
Open Concept Spaces: Great for flexible lighting in living-dining combos or office work zones.
-
Hotel Suites & Apartments: Provides convenient dual-zone lighting adjustment for guests or tenants.
-
Retail & Gallery Spaces: Allows separate brightness control for different display zones.
-
Smart Home Lighting Systems: Wireless dimming for any 2-zone setup with MiBOXER 2.4GHz receivers.
Technical Specifications:
Specification | Details |
---|---|
Model | PUSH3-2 |
Product Type | 2 Gang Wireless Dimming Panel |
Control Technology | 2.4GHz RF Wireless |
Control Distance | Up to 30 meters (open area) |
Zones Controlled | 2 Zones |
Control Mode | Push button (Short press: ON/OFF, Long press: dimming) |
Compatible Devices | MiBOXER/MiLight 2.4GHz RF controllers |
Power Supply | 2 × AAA batteries (not included) |
Standby Power | <10µA |
Mounting Type | Wall-mounted (EU/US standard 86-type box) |
Material | ABS + Tempered Glass Panel |
Operating Temperature | -10°C to +40°C |

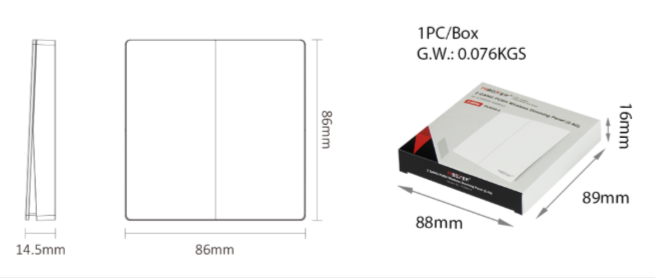

Dimensions | 86 × 86 × 20.3 mm |
Weight | ~115g (without batteries) |
