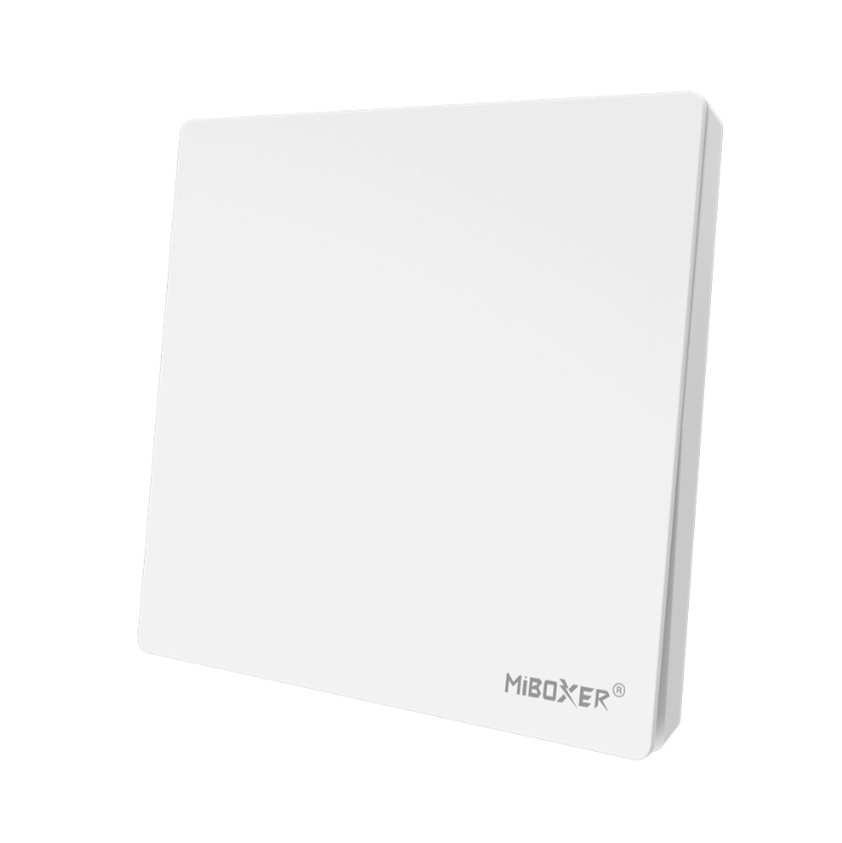

PUSH3 - 1 GANG PUSH Wireless Dimming Panel (2.4GHz)
PUSH3 - 1 GANG PUSH Wireless Dimming Panel (2.4GHz)
Key Features:
-
Wireless 2.4GHz RF Control: Enables smooth dimming and on/off control for compatible MiBOXER 2.4GHz LED controllers.
-
Touch & Push Button Interface: Combines tactile push-button control with a sleek, minimalist design.
-
Single-Zone Operation: Ideal for controlling a single lighting zone with precision.
-
Wall-Mount Design (EU/US Standard): Clean, modern aesthetic fits standard wall switch boxes.
-
Low Power Consumption: Battery-powered (2 x AAA), with long standby life and easy installation.
Applications:
-
Residential Lighting Control: Perfect for living rooms, bedrooms, and hallways for intuitive lighting adjustments.
-
Offices & Conference Rooms: Seamless control of ambient lighting to match different tasks or moods.
-
Retail & Showrooms: Simple brightness control to enhance product displays or adjust for daylight.
-
Hotels & Hospitality: Stylish and functional solution for guest room lighting.
-
Smart Home Projects: Easily integrates into wireless lighting systems without complex wiring.
Technical Specifications:
Specification | Details |
---|---|
Model | PUSH3 |
Product Type | 1 Gang Wireless Dimming Panel |
Control Technology | 2.4GHz RF Wireless |
Control Distance | Up to 30 meters (open area) |
Zones Controlled | 1 Zone |

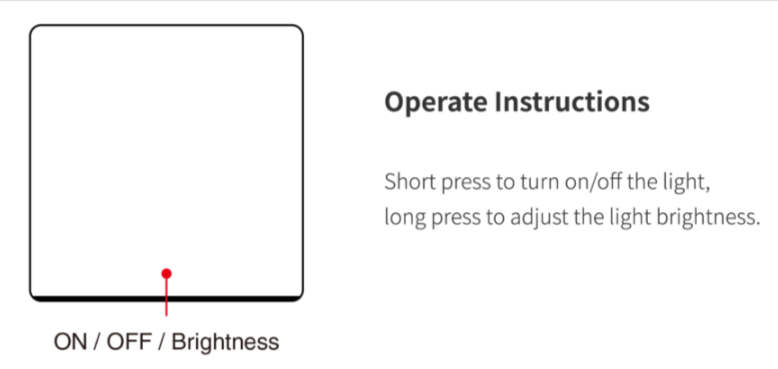

Control Mode | Push button (short press ON/OFF, long press dimming) |
Compatible Devices | MiBOXER/MiLight 2.4GHz RF controllers |
Power Supply | 2 × AAA batteries (not included) |
Standby Power | <10µA |
Mounting Type | Wall-mounted (EU/US standard 86 type box) |
Material | ABS + Tempered Glass Panel |
Operating Temperature | -10°C to +40°C |

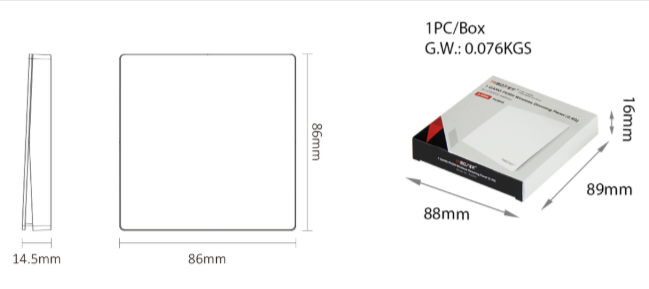

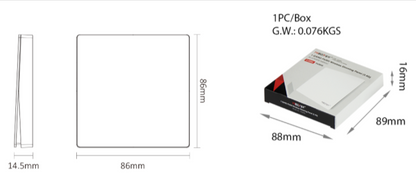

Dimensions | 86 × 86 × 20.3 mm |
Weight | ~110g (without batteries) |
